Rapla's PR 400i
Industrial precision. Up to 10x faster build times. Maximum material freedom.
Achieve industrial precision and up to 10x faster build times with the PR400i's dual-projector technology. The open material platform enables scalable high-throughput production with maximum flexibility.
Select options
Why PR400i sets standards
Highest precision in SLA 3D printing
Reduced construction times and significantly higher throughput for industrial applications.
Compatible with qualified 385 nm and 405 nm resins – without vendor lock-in.
Distortion-free, stable and dimensionally accurate results – even with complex geometries.
Dynamic real-time control for optimizing quality, speed, and process reliability.
UHD projection for sharp contours, precise micro-details and delicate structures.
Technical specifications
Rapla's PR400i
Installation space: 420 × 384 × 50–400 mm, according to customer requirements
Tub volume: 30 l to 150 l
Maximum resolution: XY: 0.10 mm high-resolution pixel size • Z: 0.0002 mm vertical resolution • Repeatability: ±0.01 mm
Light source: 405 nm Quad Pixel Shift LED projector
Maximum optical power: approx. 6 W
Projection resolution: 4300 × 3840 pixels, pixel shift
Pixel size, XY: 0.1mm
Machine dimensions: 1.42 × 1.03 × 1.89 m, installed
Weight: approx. 800 kg
RAPLAS
PR400i

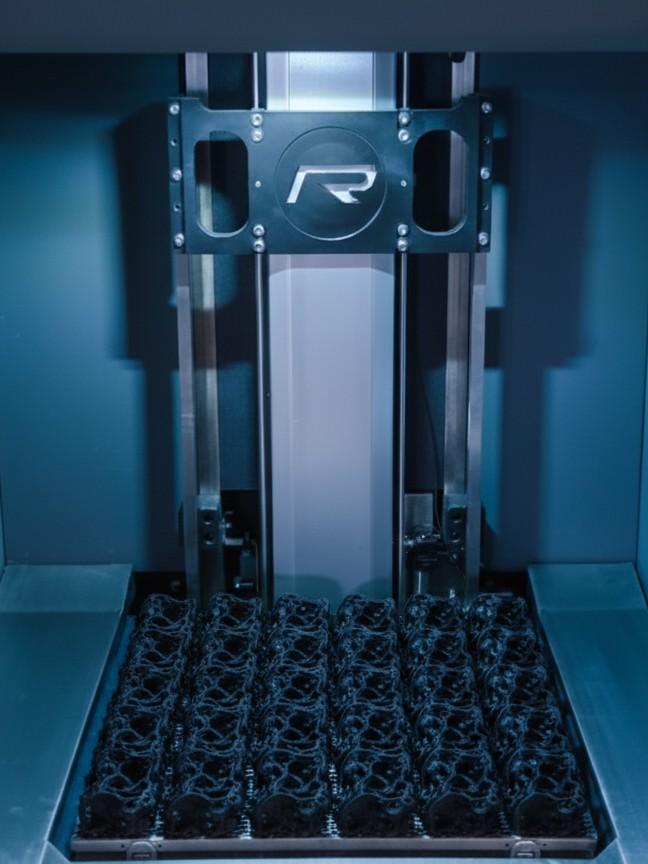

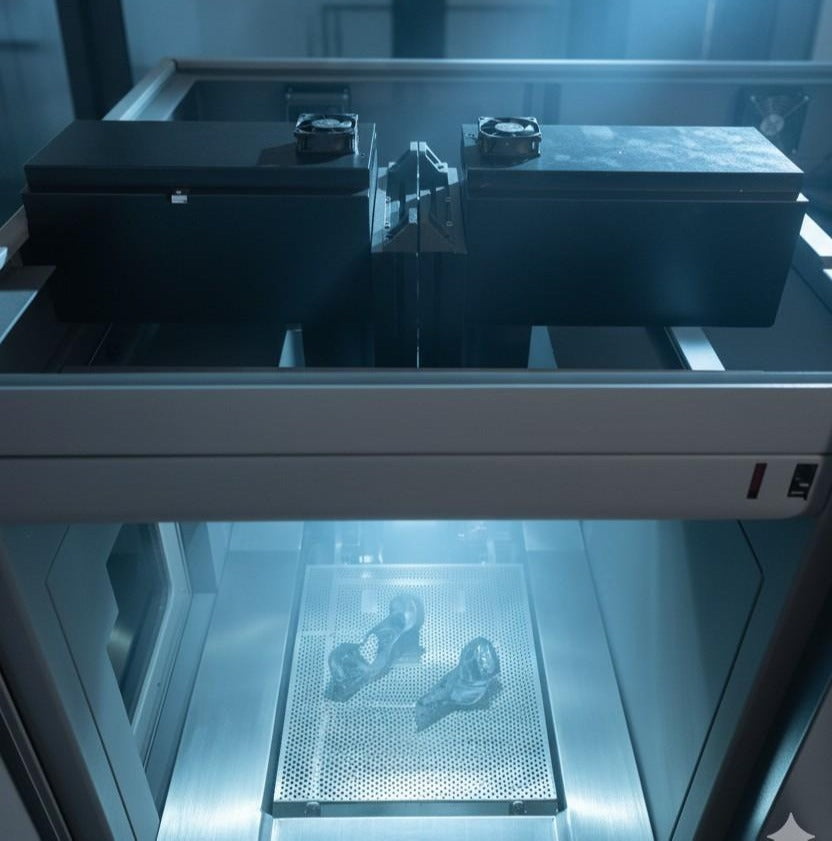

Thanks to dual-projector technology, the PR400i achieves build times up to 10 times faster than conventional systems. This significantly increases throughput in demanding applications. With a build volume of 420 × 384 mm, the PR400i supports both larger parts and multiple components in a single print run, enabling scalable production without compromise.

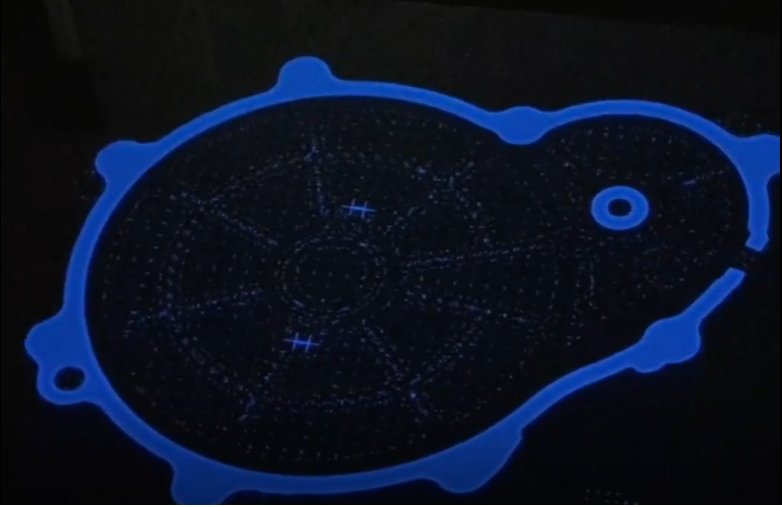

Inspired by SLA technology, our peel-off support system ensures distortion-free, robust, and dimensionally accurate components – even with complex geometries. The dual projectors deliver UHD images for razor-sharp precision in microstructures and delicate components.

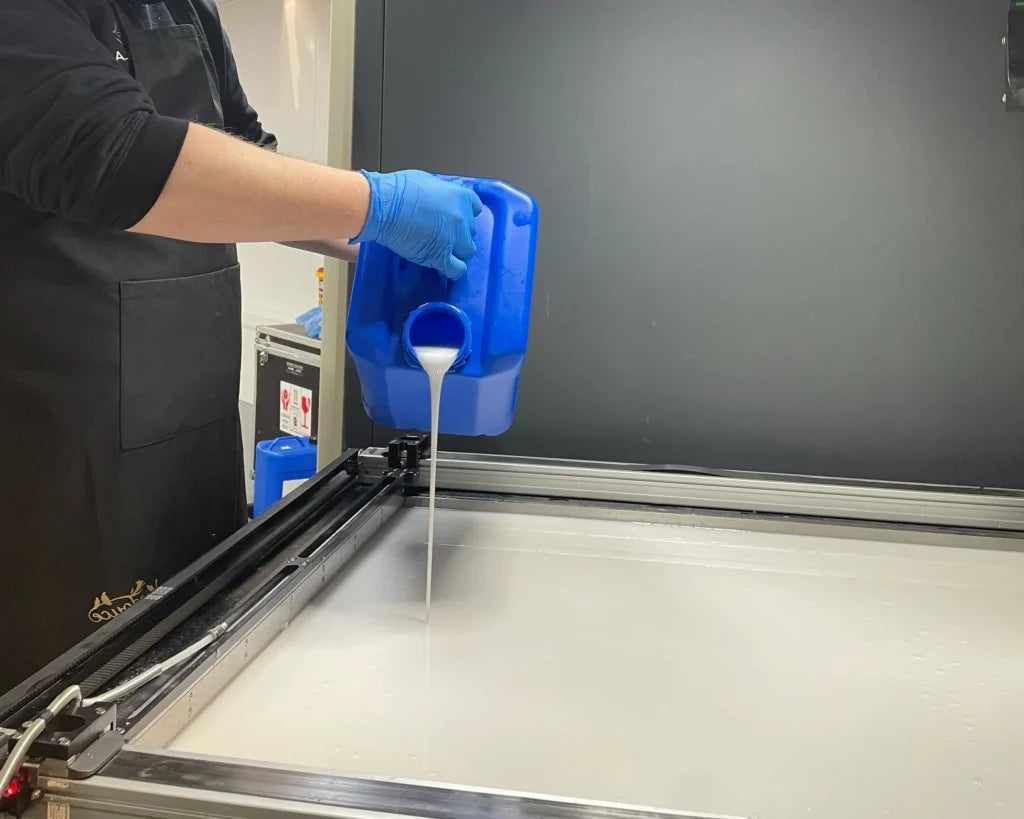

Our proprietary Integra+ software, enhanced by Raplas SmartBuild™ technology developed in partnership with Materialise, provides dynamic, real-time control to optimize quality and speed – individually for each part. The system is designed for all third-party 385 nm and 405 nm resins qualified by Raplas, offering true material freedom without vendor lock-in.
