Ultrasonic Cleaning Devices

280,00 €

plus VAT. shipping costs will be charged at checkout

Model:

variant

After 3D printing with resin, thorough cleaning is essential. The ShapeWash Series ultrasonic cleaner ensures efficient and material-friendly cleaning of your resin components and is available in the 020s and 040s variants.

Support

Two models for different applications

The devices in the series feature a stainless steel housing that is suitable for industrial applications and is easy to clean after multiple parts cleaning cycles.

The ShapeWash 040S is the perfect choice when printing large parts with the P400 series models or requiring frequent, high-volume cleaning.

Cleaning

The ShapeWash 020S and 040S are compatible with alcohol and isopropyl alcohol (IPA) as cleaning agents.

Ultrasonic propulsion

The ShapeWash series uses the high-frequency vibration of the ultrasonic motor to set the cleaning medium in motion. This creates a high-pressure influence around the resin object, which removes loose resin residue on the surface of the 3D printed parts. The result is cleanly hardened parts that are ready for finishing.

Technical data

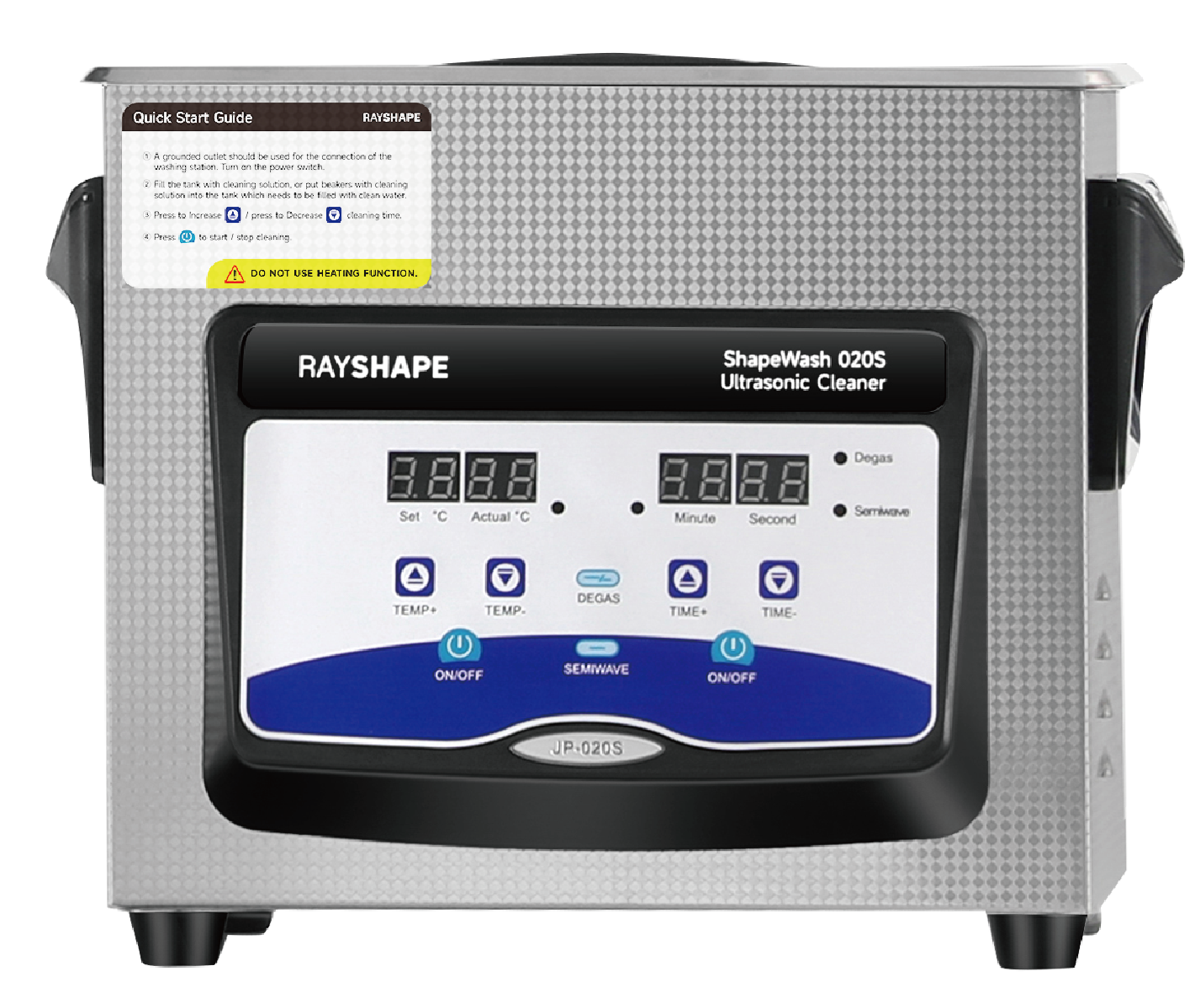

ShapeWash 020S

Cleaning volume: 240 × 135 × 100 m

Technology: Ultrasonic cleaning

Cleaning agents: IPA, alcohol

Compatible resins: Shape Materials – Basic/Functional/Advanced/Denta Series

Ambient conditions: Ambient temperature 18-28℃

Ultrasound

Ultrasonic frequency: 40 kHz

Cleaning time: individually adjustable (1-30 minutes)

Rinsing container

Volume: 3.2 L

Material: SUS304

Power

Input voltage:

100-120VAC, 50/60Hz

220-240VAC, 50/60Hz

(depending on country/region)

Rated power: 120 W

Dimensions & Weight

Device dimensions: 270 × 185 × 230 mm

Device weight: 3.25 kg

Packaging dimensions: 340 × 250 × 445 mm

Packaging weight: 4.3 kg

ShapeWash 040S

Cleaning volume: 300 × 240 × 150 m

Technology: ultrasonic cleaning

Cleaning agents: IPA, alcohol

Compatible resins: Shape Materials – Basic/Functional/Advanced/Denta Series

Ambient conditions: Ambient temperature 18-28℃

Ultrasound

Ultrasonic frequency: 40 kHz

Cleaning time: individually adjustable (1-30 minutes)

Rinsing container

Volume: 10 L

Material: SUS304

Power

Input voltage:

100-120VAC, 50/60Hz

220–240VAC, 50/60Hz

(depending on Country/Region)

Rated power: 240 W

Dimensions & Weight

Device dimensions: 380 × 290 × 280 mm

Device weight: 7.2 kg

Packaging dimensions: 500 × 445 × 350 mm

Packing weight: 9.2 kg

Open range of materials for every application

Maximum freedom in the choice of materials

Over 100 compatible materials offer you complete flexibility. Benefit from the wide range of high-quality dental materials from leading manufacturers. Thanks to RAYSHAPE's open material architecture, you'll always be up-to-date and perfectly equipped for future requirements.
