UV Curing Machine ShapeCure D
plus VAT. shipping costs will be charged at checkout
The ShapeCure D series ensures reliable final curing in the dental production process. Specially developed 405nm light modules ensure even, consistent and efficient results.
Thanks to one-click rapid curing, samples are cured evenly. An acoustic signal provides reliable information about the completion of the hardening process and thus significantly simplifies process management.
The ShapeCure D Series includes the following models:
- ShapeCure D+
- ShapeCure D
- ShapeCure D Mini
Select options

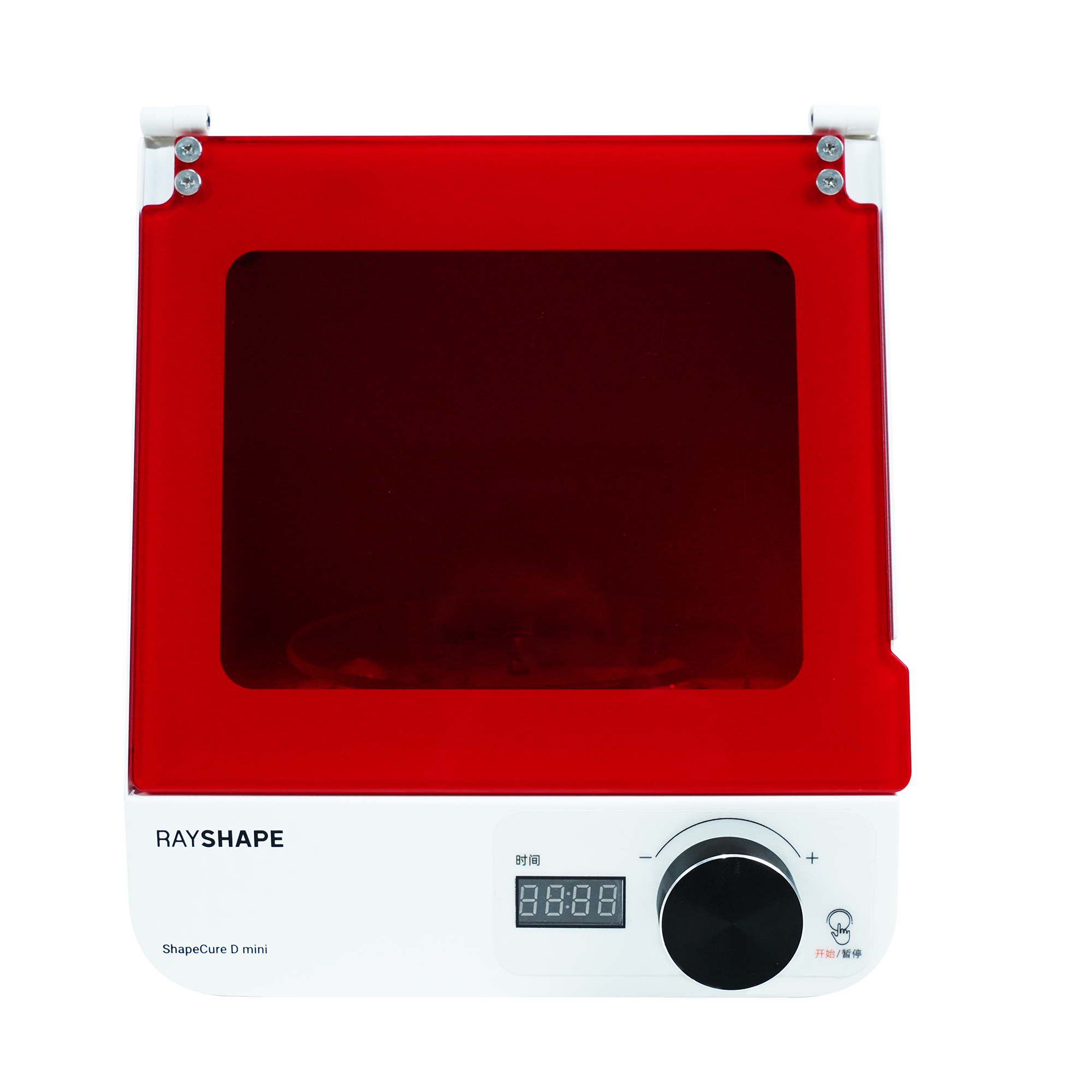

ShapeCure D Mini
Curing volume: 160 × 135 mm
Wavelength of the curing light: 405 nm
Hardening power: 18 W
Curing method: Multiple light sources in a 360° omnidirectional arrangement with internal reflection
Compatible 3D printers: Shape 1 Series/Shape 1+ Series/Shape 1+ Dental/P200 Series/P400 Series/Edge Series
materials
Supported materials: ShapeMaterials – all series
Hardware
Control chip: –
User interface: –
Input voltage: 100–240 V AC, 50 Hz
Rated power: max. 25 W
software
Hardening settings: –
Firmware updates: –
Language: -
Dimensions & Weight
Device size: 225 × 215 × 265 mm
Device weight: 4 kg
Packaging size: 275 × 275 × 330 mm
Package weight: 4.5 kg

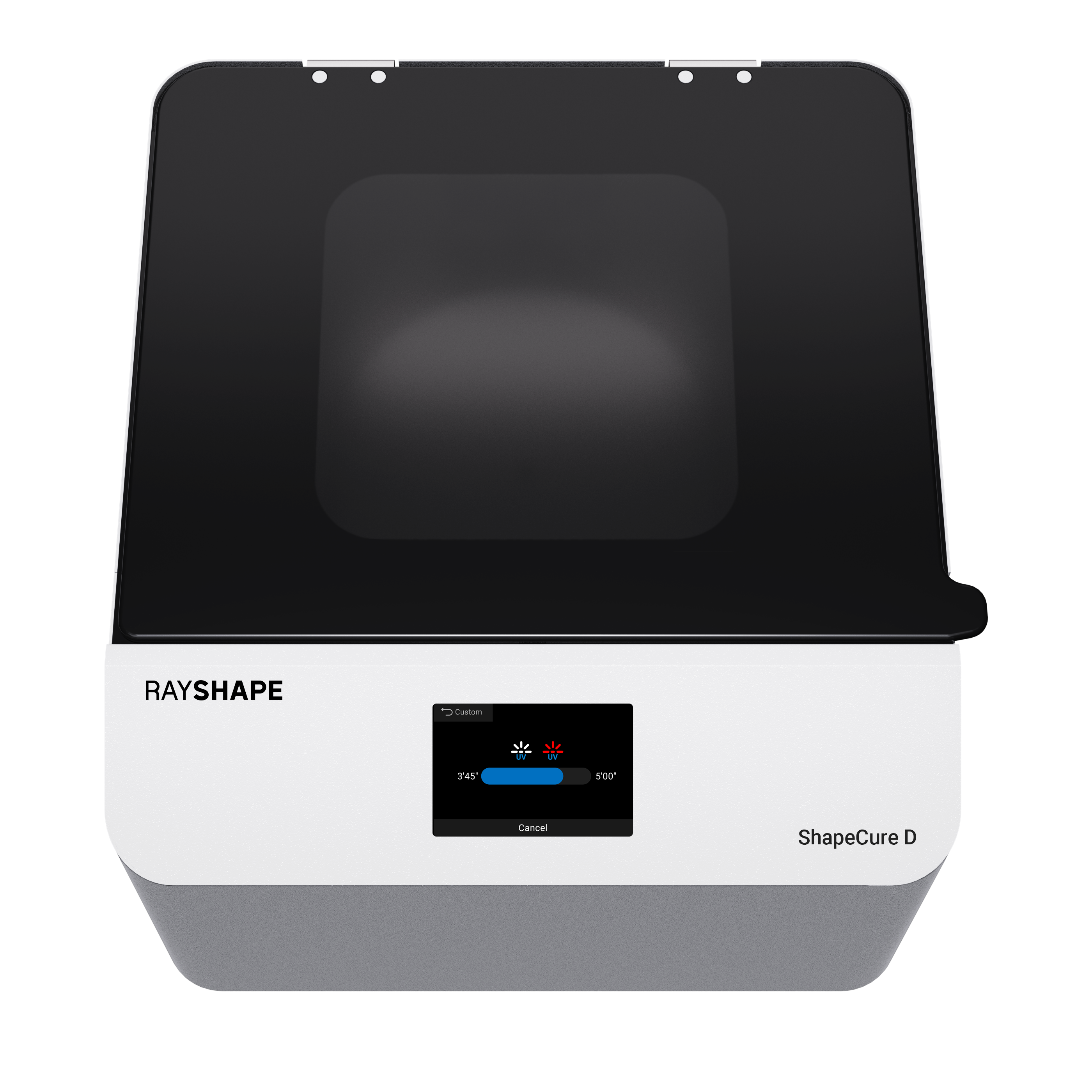

ShapeCure D
Curing volume: 180mm × 100mm, Diameter 7.09 × Height 3.94 inches
Wavelength of the curing light: 405 nm
Hardening power: 150 W
Curing method: Multiple light sources for 360° surround array; Internal reflection
Compatible 3D printers:
ALL RAYSHAPE 3D printer models
materials
Supported materials: ShapeMaterials – all series
Hardware
Control chip: STM 32 ARM chip
User interface: 3.5'' touchscreen
Input voltage: 100~120VAC, 5A, 50/60Hz 200~240VAC, 2.5A, 50/60Hz
Rated power: 200 W
software
Hardening settings: Programmable
Firmware updates: Via USB drive
Language: English
Dimensions & Weight
Device size: 312 × 342 × 193 mm
Device weight: 8 kg
Packaging size: 362 × 392 × 253 mm
Package weight: 10 kg

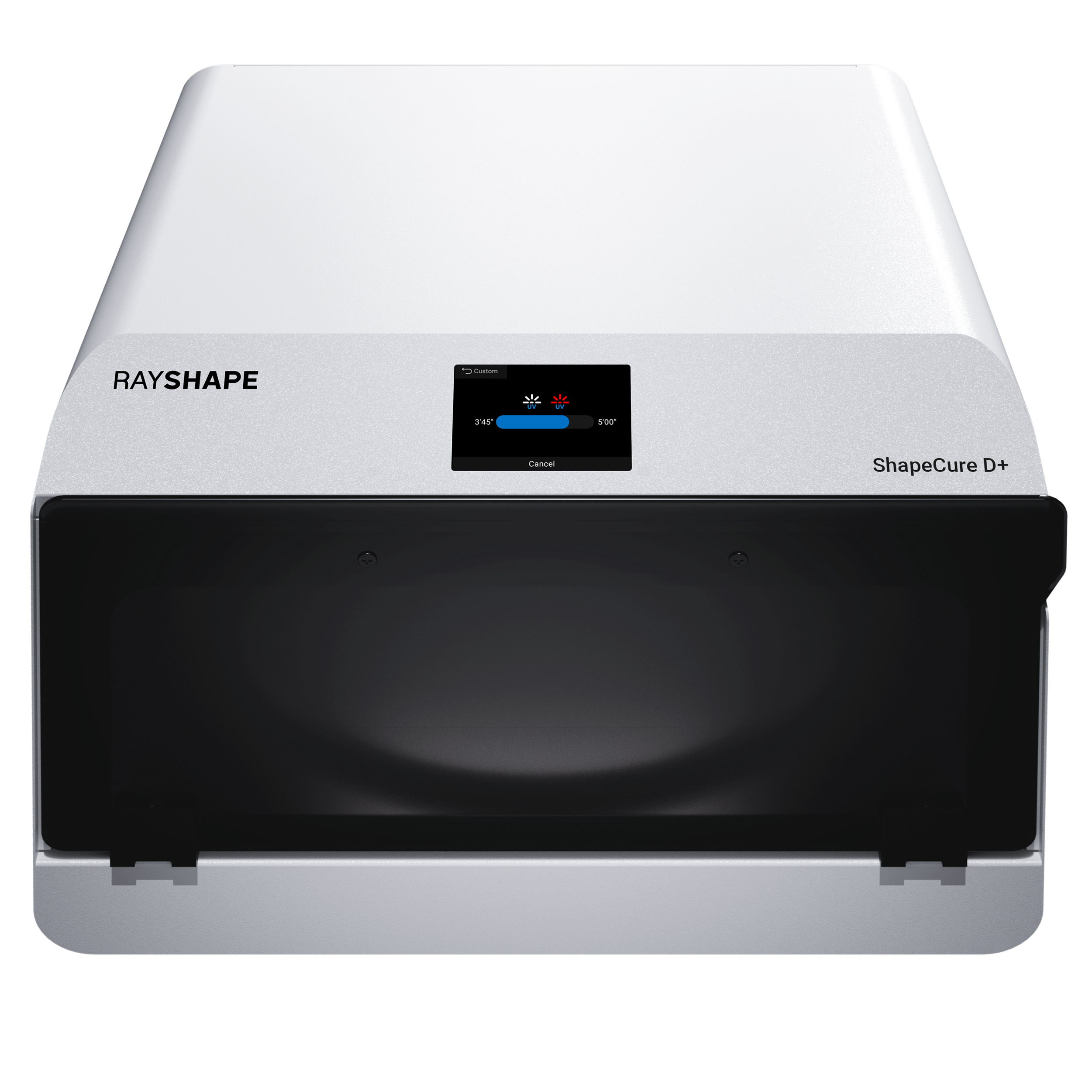

ShapeCure D+
Curing volume: 300mm × 130mm, Diameter 11.81 × Height 5.12 inches
Wavelength of the curing light: 405 nm
Hardening power: 270 W
Curing method: Multiple light sources for 360° surround array; Internal reflection
Compatible 3D printers:
ALL RAYSHAPE 3D printer models
materials
Supported materials: ShapeMaterials – all series
Hardware
Control chip: STM 32 ARM chip
User interface: 3.5'' touchscreen
Input voltage: 100~120VAC, 5A, 50/60Hz 200~240VAC, 2.5A, 50/60Hz
Rated power: 350 W
software
Hardening settings: Programmable
Firmware updates: Via USB drive
Language: English
Dimensions & Weight
Device size: 412 × 404 × 286 mm
Device weight: 15 kg
Packaging dimensions: 462 × 454 × 326 mm
Package weight: 17 kg
Open range of materials for every application
Maximum freedom in the choice of materials
Over 100 compatible materials offer you complete flexibility. Benefit from the wide range of high-quality dental materials from leading manufacturers. Thanks to RAYSHAPE's open material architecture, you'll always be up-to-date and perfectly equipped for future requirements.
Request for the ShapeCure D
Do you have questions or need help choosing the right device?
Then contact us - one of our employees will assist you as soon as possible!
