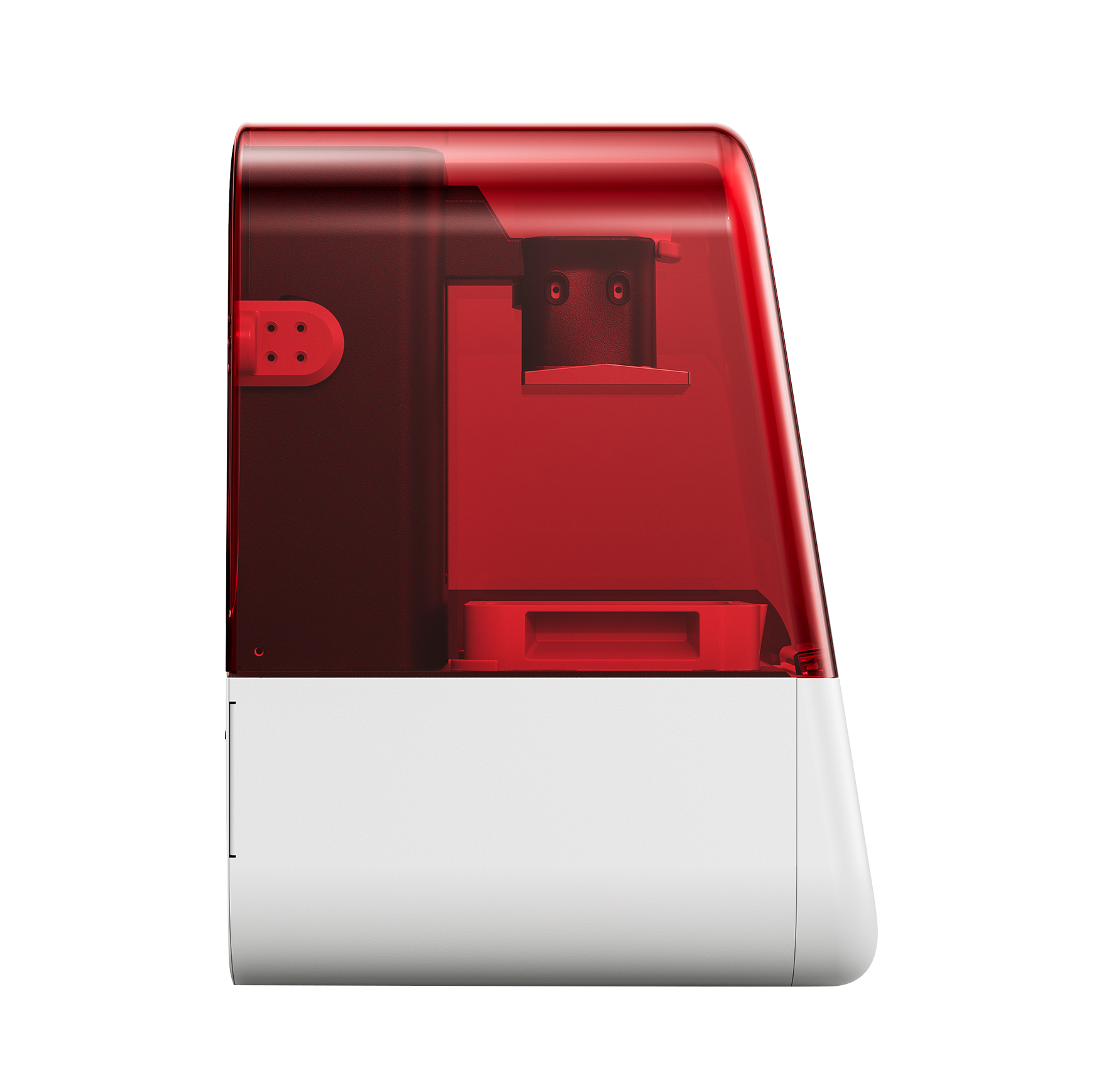

Edge Mini
plus VAT. shipping costs will be charged at checkout
The patient's smile is just a click away
-
The Edge mini was developed specifically for dental practices and impresses with its compact design and intuitive workflow. Simply unpack and get started: Thanks to the well-thought-out, user-friendly design and plug-and-play, even beginners can immediately use the Edge mini safely without any training.
-
Dual platform versatility: Seamlessly switch between a small platform (60 x 60 x 100 mm) for crowns and bridges or a large platform (130 x 80 x 100 mm) for models, splints and surgical guides.
-
Benefit from ultra-high precision of 35µm for clinically accurate fits. This means that precise crowns &, bridge restorations, implant-related and orthodontic work can be printed easily, quickly and efficiently.
- Discover the impressive world of material diversity and benefit from a wide range of industry-leading materials for all common dental applications. Thanks to the open material architecture, you are always up to date and benefit from the latest, validated 3D printing materials - for future-proof and innovative production.

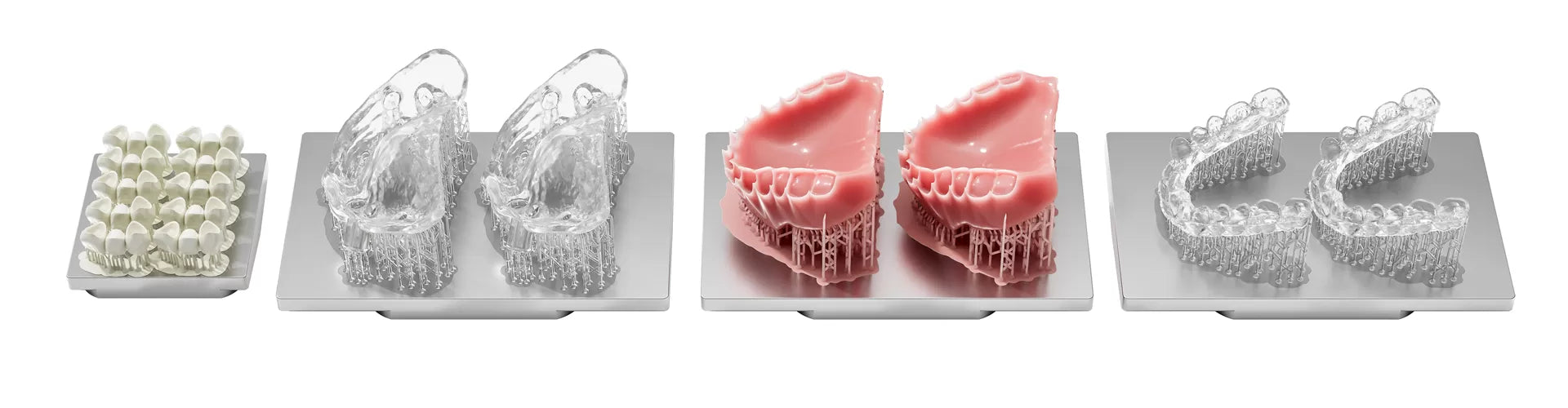

- Applications: Crowns - bridges - splints (bite splints, IBD splints) - drilling templates - individual trays - denture bases - try-ins - gingival masks - models - cast.
Core specifications
- Construction volume: 60 × 60 × 100 mm/130 × 80 × 100 mm
- Pixel size: 35 μm
- Technology: LCD
- Variable layer thickness: 0.05 – 0.20 mm
The 3D printer is shipped securely by pallet (shipping company). The shipping costs already include transport insurance.
- Shipping costs 105€
- Shipping weight including accessories: 20 kg
Select options
Mini 3D printer: Optimized patient experience & higher medical added value
Optimized treatment process/Improved patient experience/Highly efficient printing performance
By simplifying treatment processes and improving the patient experience, the Edge mini creates real added value for medical facilities. Its high printing speed, precise performance, and user-friendly operation reduce waiting times, minimize multiple appointments, and increase treatment efficiency and comfort.
As an ideal 3D printing solution for the dental and medical sectors, the Edge mini helps practices and clinics to increase service quality, reduce the number of patient visits and sustainably increase overall satisfaction.

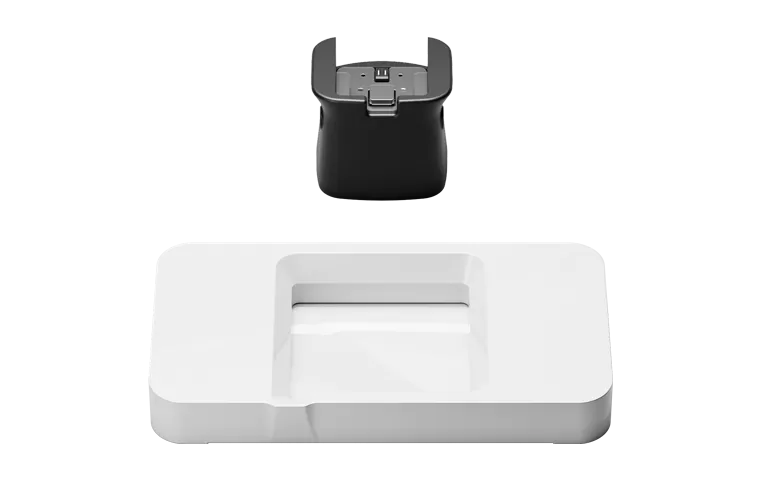

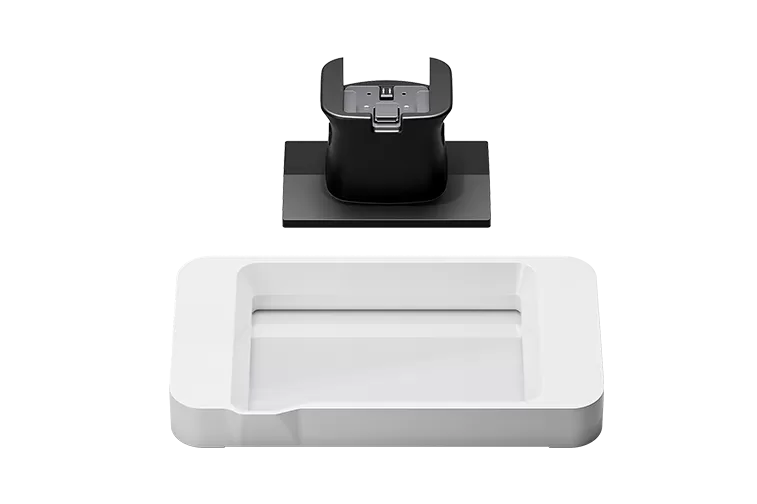

Dual Platform Versatility:
Seamlessly switch between a small platform (60 x 60 x 100 mm) for crowns and bridges or a large platform (130 x 80 x 100 mm) for models, splints, and drilling templates.RAYSHAPE Edge mini Ecosystem

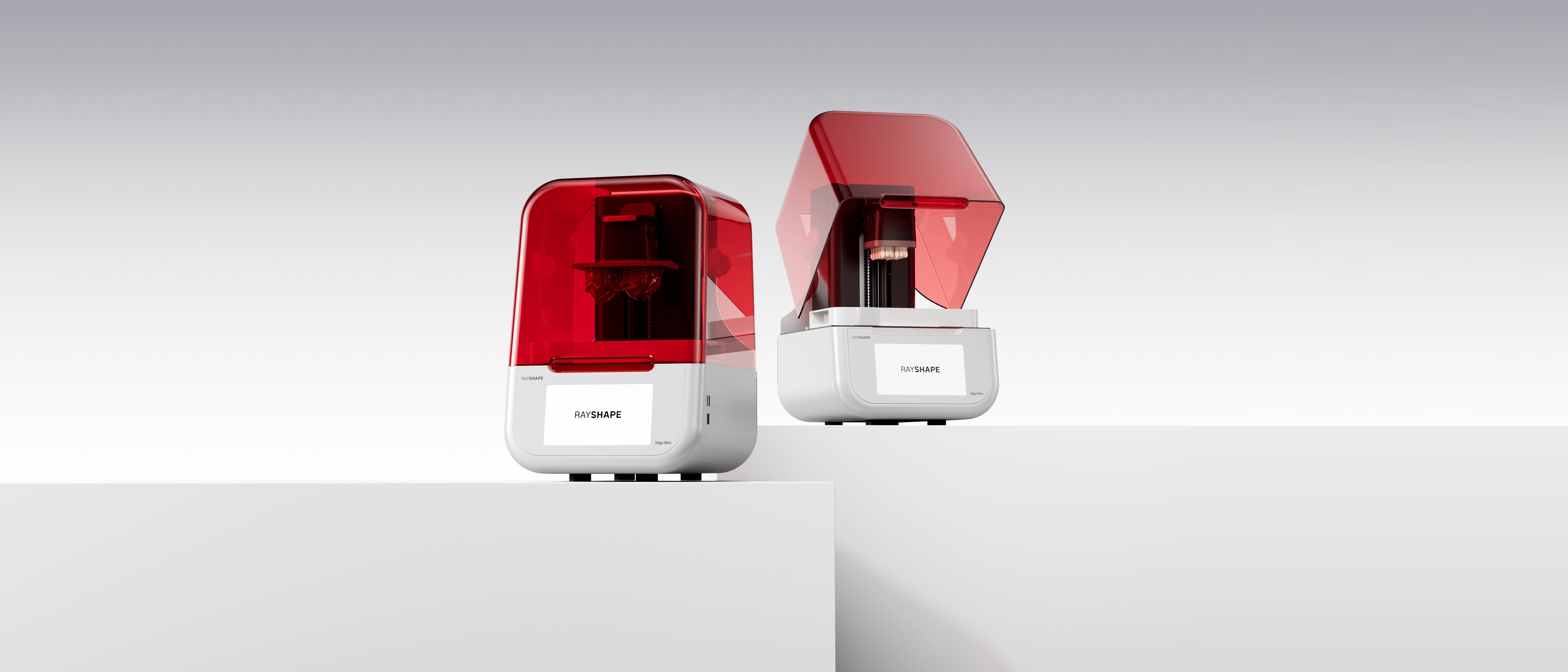

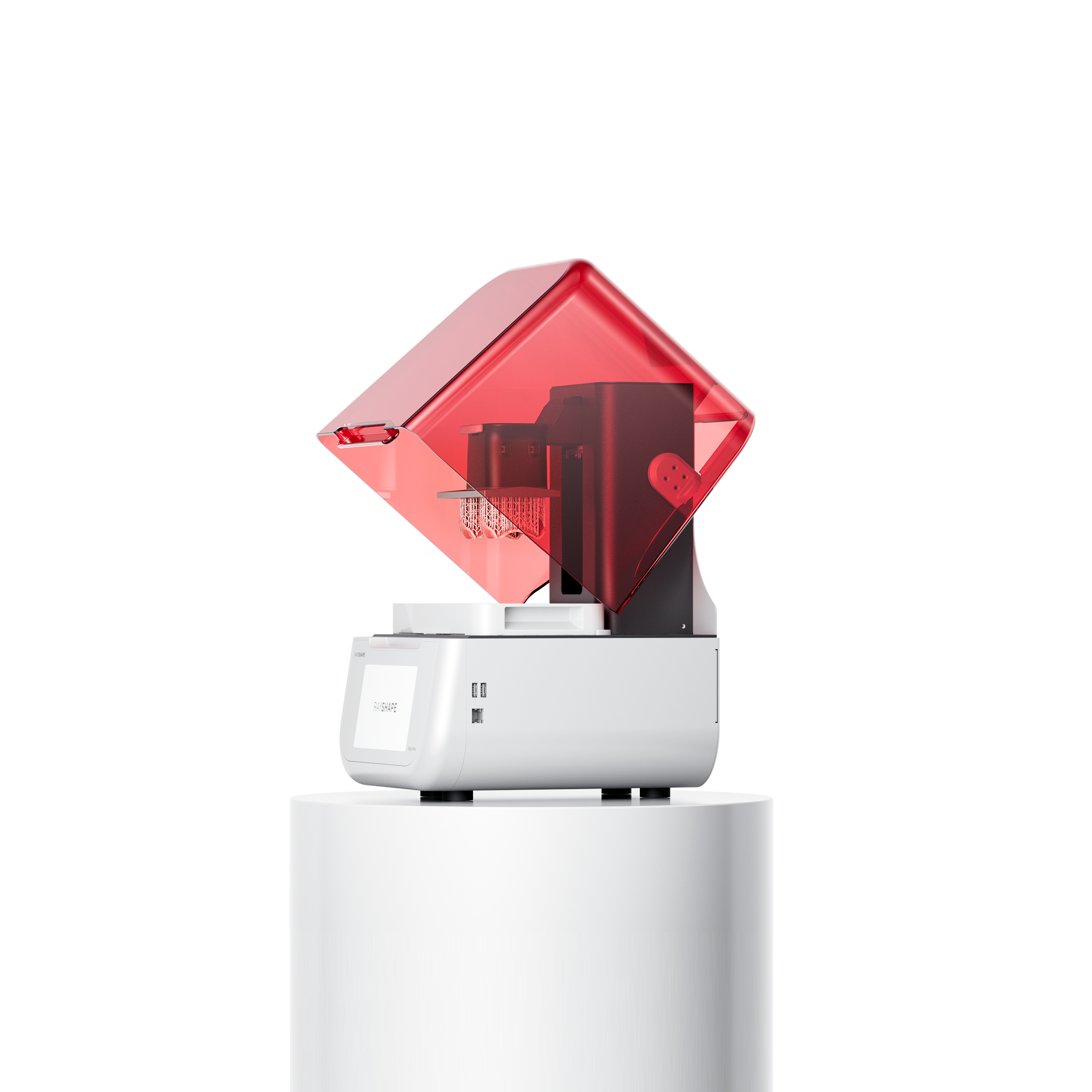

Edge mini
Dental DLP Professional 3D Printer

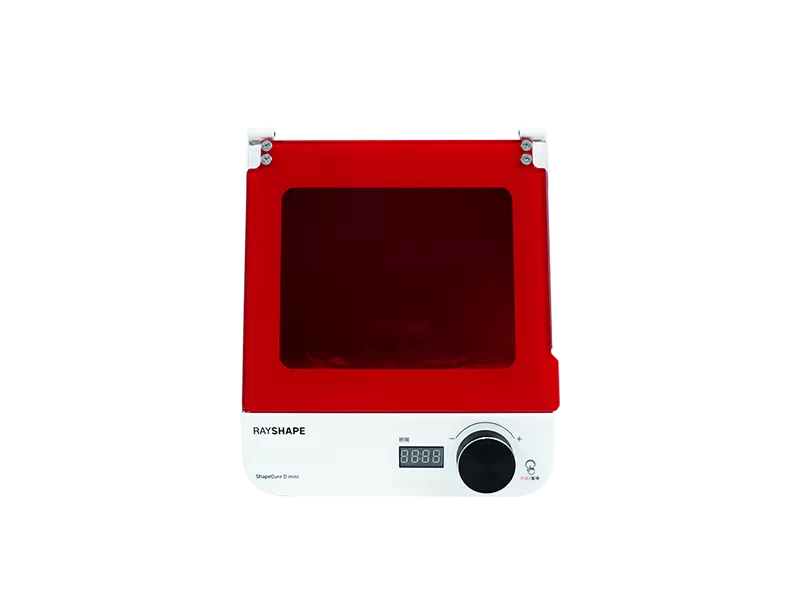

ShapeCure D mini
Ultra-fast curing, stable and reliable

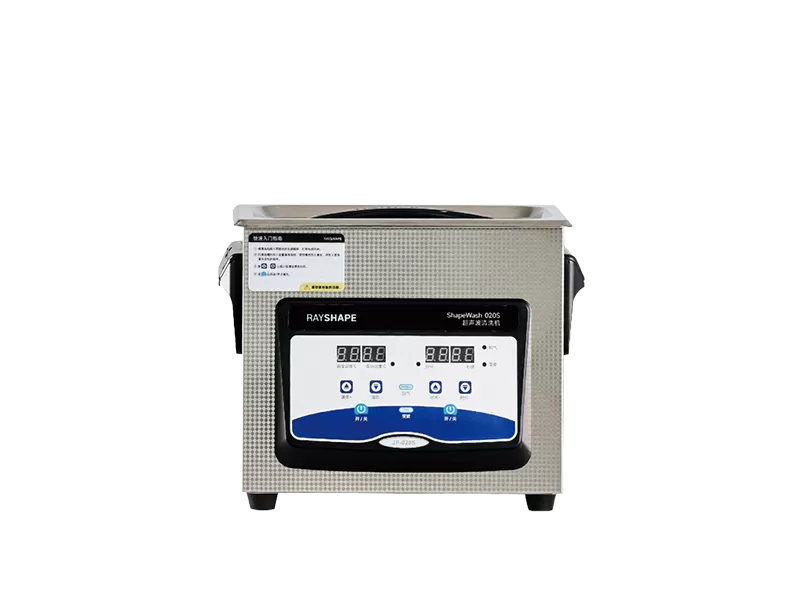

ShapeWash 020S
Rapid cleaning, efficient and intelligent

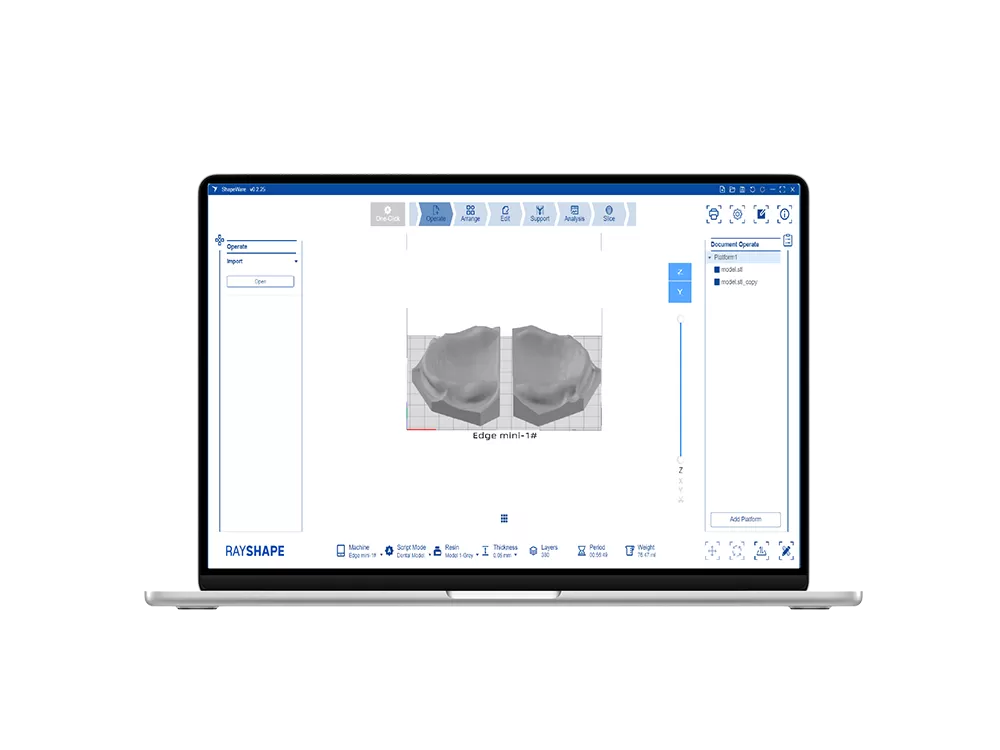

ShapeWare2.0
Easy to use, one-touch operation
Highest precision & fast printing – new standards for chairside 3D printing
The Edge mini 3D printer was specifically developed for the dental industry and is equipped with near-industrial high-precision technology. It delivers high-resolution results with exceptional detail – at a level comparable to professional manufacturing standards.
specifications
rayshape - edge mini
Core parameters
Construction volume: 60 × 60 × 100 mm/130 × 80 × 100 mm
Pixel size: 35 μm
Technology: LCD
Variable layer thickness: 0.05 – 0.20 mm
Hardware
LCD display: 6.23″ 4K monochrome display
Light source: LED
Wavelength: 405 nm
Resolution: 3840 × 2400 pixels
Door monitoring: Pressure automatically pauses when the cover is opened (optional)
Touchscreen: 7″ color touchscreen
Connectivity: USB 2.0, Wi-Fi (2.4 GHz), Ethernet
Input voltage: 100–120 VAC, 50/60 Hz · 220–240 VAC, 50/60 Hz
Rated power: 120 W
Software
Control system: Proprietary master operating system
Languages: English, Chinese
Slicing software: ShapeWare 2.0
Supported operating systems: Windows 10/11
Incoming file formats: .stl
Output file formats: .rs, .shape
Advanced features: Model editing, automatic repair, model trimming, hollowing out, perforating, labeling,
Wireless printing: Transfer of print jobs to selected printers on the LAN via a "one-click" function
Cluster management: Central management of print jobs from multiple devices on the LAN.
Materials/Dimensions
Available materials: ShapeMaterials Dental Series & over 100 pre-validated materials
Device dimensions: 300 × 280 × 427 mm
Net weight: 12 kg
Packaging dimensions: 385 × 385 × 620 mm
Package weight: 17 kg
